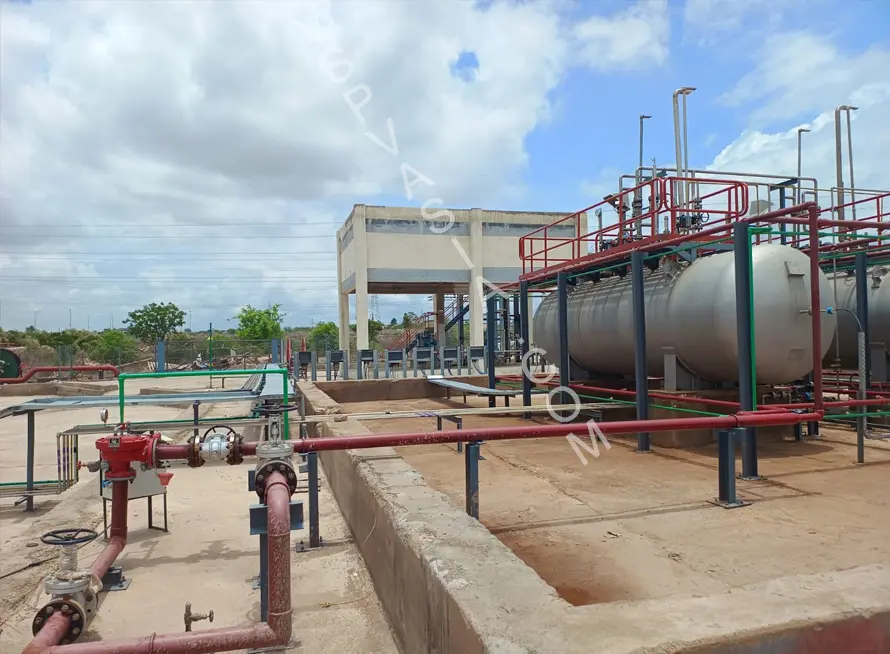

Ammonia Turnkey Project

VSPV > Ammonia Turnkey Project

Ammonia Turnkey Solutions

VSPV offers an end-to-end solution from design & manufacturing of storage facilities which includes Unloading pump and compressor, storage tank, transfer pump or boosting pump water bath type vaporizers, Pressure regulating skid, buffer tank, Interconnection pipes, electrical cabling, and instrument cables

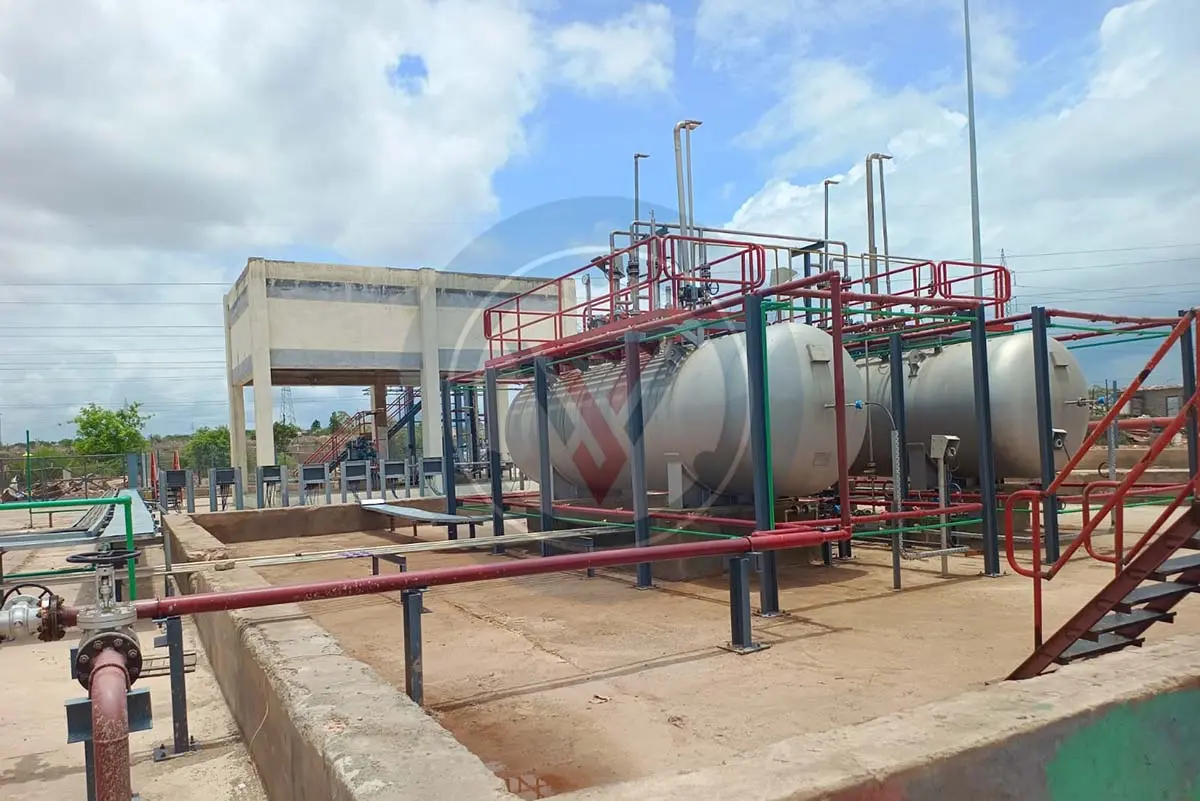

Components of Ammonia Storage Turnkey System

1. Unloading Pump and Compressor

Unloading Pump

  • Used to Transfer liquid ammonia from the road tanker into the storage tank safely
  • Designed to handle ammonia’s corrosive and pressurized nature.
  • Helps in smooth unloading even when the tanker pressure is insufficient.

Compressor

  • when ammonia is in vapor form or when tanker pressure equalization is required.,Compressor is used
  • Minimizes losses and environmental release by recovering Ammonia Vapour
  • Helps to maintain proper tank pressure balance during unloading.

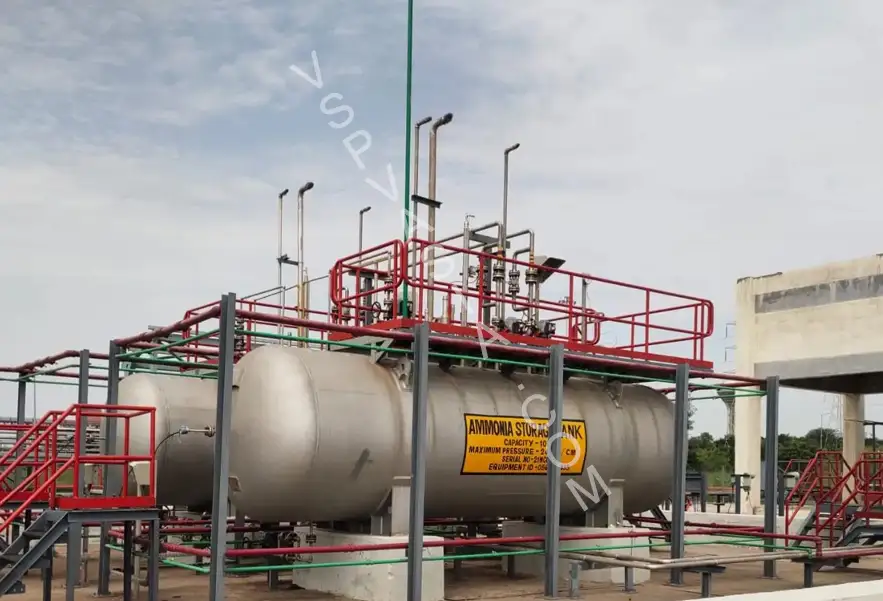

2. Storage Tank

  • Used for the bulk storage of Anhydrous Ammonia
  • a single-walled, refrigerated, or pressurized vessel
  • Equipped with Level gauges for monitoring liquid levels. Safety relief valves to protect against overpressure. Insulation and protective coatings to minimize product loss and corrosion. Built to international safety standards (ASME, or equivalent).
3. Transfer Pump / Boosting Pump
  • Transfers liquid ammonia from the storage tank to downstream systems.
  • Provides additional pressure when the natural flow is insufficient.
  • Makes sure the supply for vaporizers and consumption points are stable and reliable.
  • Comes with mechanical seals, cooling systems, and safety shut-offs customized for ammonia service.
4. Water Bath Type Vaporizers

This Converts liquid ammonia into gaseous ammonia for industrial use. it Operates by immersing heating coils in a warm water bath, which gently transfers heat to the ammonia.

Advantages:
  • Stable and controlled vaporization.
  • Prevents freezing or sudden temperature drops in pipelines.
  • Reliable performance even under fluctuating load conditions.
  • Designed with automatic temperature regulation and safety interlocks.

5. Pressure Regulating Skid (PRS)

It is used to control and stabilize the outlet pressure of gaseous ammonia ensuring that downstream systems (like process equipment or fuel applications) receive ammonia at usable pressure.

Our Skid includes:

  • Pressure regulators and relief valves.
  • Instrumentation (pressure transmitters and gauges).
  • Control panel for monitoring and safety trips.

6. Buffer Tank

it is used as an intermediate storage reservoir for gaseous ammonia after vaporization.

  • Balances demand fluctuations by storing excess vapor when consumption is low and supplying it when demand spikes.
  • Prevents frequent cycling of vaporizers and pumps, therefore improving system efficiency.
  • Acts as a safety cushion in case of sudden load variations.

The stations we facilitate operates under PLC /SCADA automation.

We also design fire detection system, fire detection system and gas detection system.

VSPV provides an end-to-end solution from design & manufacturing of tanks, civil work at site, erection & commissioning, to supporting for approvals & licensing from the Govt. of India statutory agency PESO.

1-year warranty on manufacturing defects

VSPV stands behind our products throughout their service life:

Contact VSPV today for detailed specifications and customization options to meet your storage requirements.
