LNG Tank

VSPV > Hydrogen/LNG > LNG Tank
Cryogenic liquid storage tanks for Liquefied Natural Gas (LNG)

LNG Tank

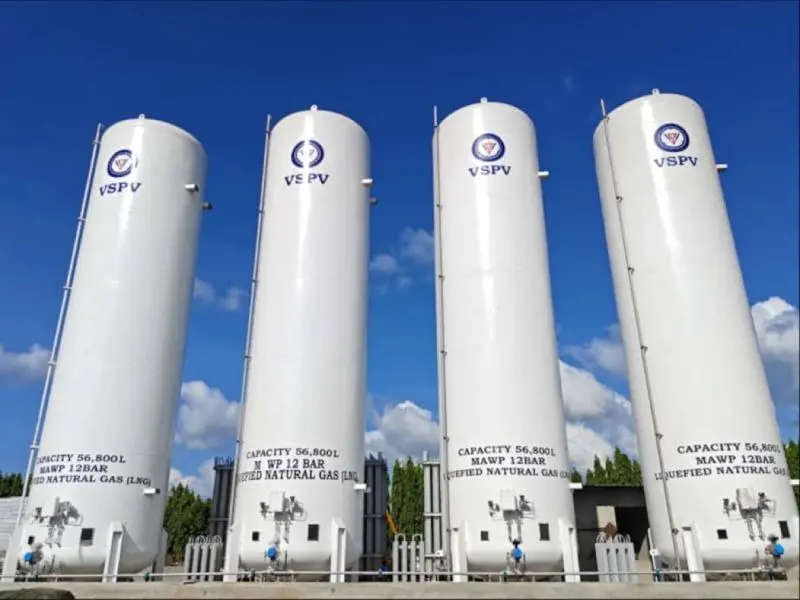

V.S. Pressure Vessel and Gas Projects Pvt. Ltd. (VSPV) designs & manufactures superior quality Cryogenic liquid storage tanks for Liquefied Natural Gas (LNG). Tanks are vacuum insulated with the option of either Perlite or Multi-Layer super Insulation.

VSPV LNG cryogenic tanks are designed to offer our customers the ease of operation, low evaporation loss, leading to low operation cost. With a robust design using the austenitic stainless-steel plates, seamless stainless-steel pipes, world renowned imported quality valves, gauges & instruments. Tank size ranges from 24,000 litres to 114,000 litres, with maximum allowable working pressure (MAWP) of 12 bar. Tanks are designed according to EN-code but can be designed as per ASME or other codes as per the customer’s requirement.

VSPV provides an end-to-end solution from design & manufacturing of tanks, civil work at site, erection & commissioning, to supporting for approvals & licensing from the Govt. of India statutory agency PESO.

Questions? You’re covered

At vero eos et accusamus et iusto odio dignissimos ducimus qui blanditiis praesentium voluptatum deleniti atque corrupti quos dolores et quas molestias excepturi sint occaecati cupiditate.
01. Can i use green energy in my home or business?
Randomised words which don’t look even slightly believable. If you are going passage of you need sure there anything make a type specimen book. It has survived not only five centuries.

Randomised words which don’t look even slightly believable. If you are going passage of you need sure there anything make a type specimen book. It has survived not only five centuries.

Randomised words which don’t look even slightly believable. If you are going passage of you need sure there anything make a type specimen book. It has survived not only five centuries.

Our Products

Have a
project in
mind?

Let’s Talk

Download Brochures

Main Features
01

Robust Design

Manufactured with corrosion resistant stainless-steel (SS) plate, stainless steel (SS) seamless pipe, high quality valves, gauges and instruments.
02

SS Seamless Pipes and Tubes

VSPV uses only corrosion resistant stainless-steel pipes and tubes for inner tank piping and external piping to have a better aesthetics, long corrosion free, leak free and maintenance free life.
03

Oxygen Compatible Cleaning

Stainless steel inner tank, internal pipes, external pipes, and fittings are cleaned through a series of processes like pickling, passivation and degreasing followed by stringent quality checks with a ultraviolet (UV) lamp, which ensures superior clean environment for Oxygen storage.
04

Testing

Tanks undergo through a series of Non-Destructive Examinations (NDE) including helium leak test to ensure robustness, long vacuum retention, leak proof and maintenance free life.
05

Vacuum Guarantee

Stringent helium leak test, followed by Vacuuming with latest good quality vacuum pumps provides a long vacuum retention period.
06

Safe & Ease of Use

Placed inside a movable trolley with wheels to prevent any accidental damage to the tank during transportation. It is designed for ease of operation of valves at man-height
07

Aesthetics

SS Tank is polished, pasted with safety instructions sticker for a better aesthetics.
07

Flexibility

Customer can choose between perlite & super insulation or 4-Leg & 3-Leg design
09

PESO Approval & Site Work

VSPV is well equipped for site civil foundation work, erection & commissioning, and support for PESO approval & licensing
