Static tanks for the storage of Petroleum in mounded, aboveground and underground installations, made in accordance with IS 2825, ASME Section VIII Div I and div II, PD5500, EN 13445, Upon request we can manufacture tanks to the regulatory requirements of the place of destination.
Optionally any tank capacity can be manufactured in accordance with ASME, VIII div. l and div 2 ASME marking and European Pressure equipment Directive 2014/68/UE, and with CE marking..

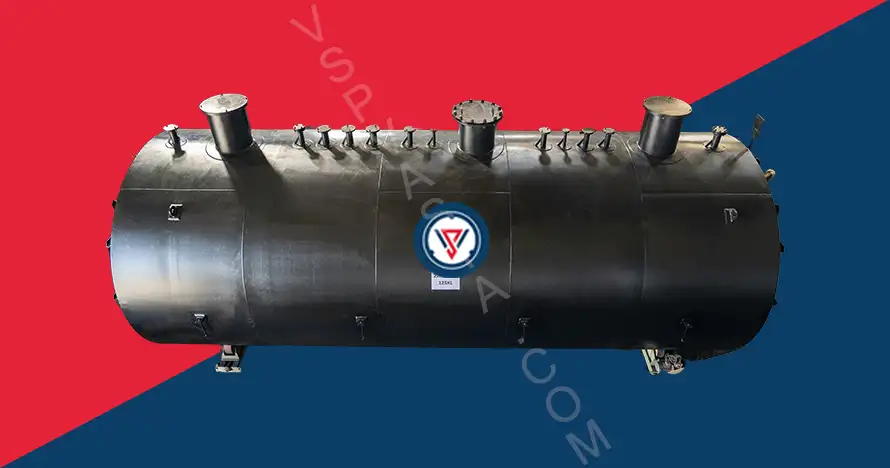

VSPV manufactures premium Static storage tanks for the storage of Petroleum in capacities from 1 to 400 m3 .Thanks to our extensive range of diameters, the scope of possible tank sizes always allows storage capacity requirements to adapt to the characteristics of each project.
Our premium quality Static storage tanks are used in various industrial and commercial applications across the country such as
Petrol, HSD storage, chemical storage, food and beverage storage, water storage, buffer tanks, mixing and blending vessels, day tanks, surge tanks, other oil and gas storagetanks, pharmaceutical storage, paint and coating storage.
Technical Specifications
| Specification | Ammonia |
|---|---|
| Design Code: | IS 10987, API 650, IS 803, ASME section VIII Div I and other design codes |
| Service Type: | HSD, Petrol, LO, SKO , and other petrochemicals |
| Tank Type | Vertical/Horizontal |
| MOC | IS 2062 |
| Design Pressure | 0.5 kg/cm² + static head |
| Design Temperature | Max 65°C |
| Working Pressure | Atmospheric Pressure |
| Corrosion Allowance | 1.5 mm |
| Dish End: | Flat |
| Support Type: | Saddle / RCC |
| External Finish | Sand blasting as per SA 2.5 and painting as per customer request |
| Design Lifetime: | 15+ years with proper maintenance |
All our tanks can be customized with components like SRV for safety, temperature gauge, pressure gauge, fixed level gauge, magnetic level gauge, high level alarm or switch.
Our Storage tanks comply with international safety and quality guidelines
VSPV stands behind our products throughout their service life:
1-year warranty on manufacturing defects
Contact VSPV today for detailed specifications and customization options to meet your specific Petrolium storage requirements.
