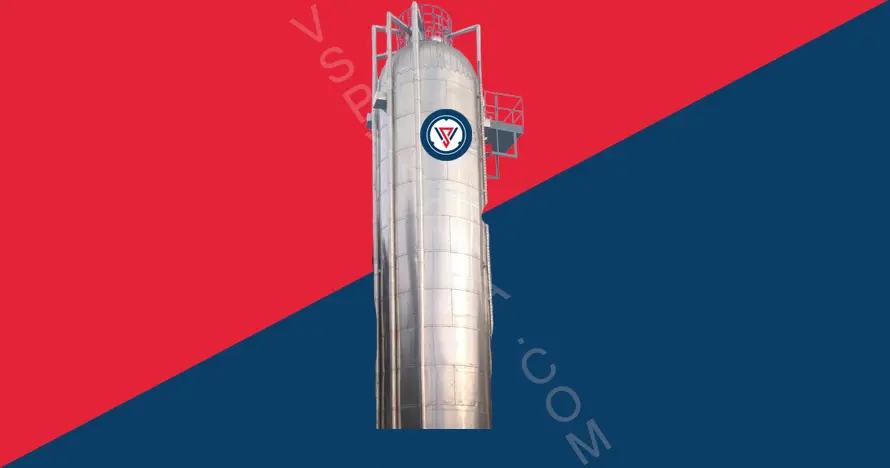

VSPV manufactures premium Static PUF (Polyurethane Foam) insulated aluminium cladded storage tanks for the storage of LCO2 at low temperatures and moderate pressure.in capacities from 1 to 200 m3 .Thanks to our extensive range of diameters, the scope of possible tank sizes always allows storage capacity requirements to adapt to the characteristics of each project.
Static tanks for the storage of LCO2 in mounded, aboveground and underground installations, in made in accordance with European Directive 2014/68/UE and with CE marking. Upon request we can manufacture tanks to the regulatory requirements of the place of destination.
Our premium quality Static storage tanks are used in various industrial and commercial applications across the country which includes food and beverage industry, oil and gas industry, fire suppression systems, welding and metal fabrication, dry ice production, chemical industry, pharmaceutical industry, water treatment, greenhouse agriculture, electronics manufacturing, textile industry, cement and concrete industry, and refrigeration and cooling.
Technical Specifications
| Specification | LCO2 |
|---|---|
| Design Code: | IS 2825, ASME Section VIII Div I and div II, |
| Tank Type | Vertical/Horizontal |
| Design Pressure | 23 kg/cm² + static head |
| Design Temperature | Min -45°C / Max 55°C |
| Working Pressure | 23 bar |
| PUF Insulation | Polyurethane Foam 100-200mm thickness |
| Corrosion Allowance | 1.5 mm to 3 mm |
| Dish End: | Torispherical, Ellipsoidal, Hemispherical |
| Support Type: | Saddle / RCC/Skirt |
| Design Lifetime: | 15+ years with proper maintenance |
All our tanks can be customized with components like SRV for safety, temperature gauge, pressure gauge, fixed level gauge, magnetic level gauge, high level alarm or switch.
Our Storage tanks comply with international safety and quality guidelines
All VSPV storage tank undergoe extensive testing and are PESO approved and comply to the SMPV rules
VSPV stands behind our products throughout their service life:
1-year warranty on manufacturing defects
Contact VSPV today for detailed specifications and customization options to meet your specific LPG storage requirements.
