VSPV Asia provides engineering design, selection support, and integration of cryogenic and high-pressure pumps used in LNG facilities. The pumps form a critical part of the fuel gas infrastructure and are responsible for unloading and transferring LNG from storage tanks to vaporizers, dispensing systems, or gas networks under controlled pressure and flow conditions.
In LNG stations and gas infrastructure, pumps are not only transfer equipment — they are process-critical pressure generation devices. The correct selection directly affects re-gasification efficiency, CNG cylinder filling pressure, gas dispensing reliability, and station uptime.
The pump systems are designed as per applicable codes and standards and are integrated with vaporizers, pressure regulating skids, and dispensing units for complete plant operation.

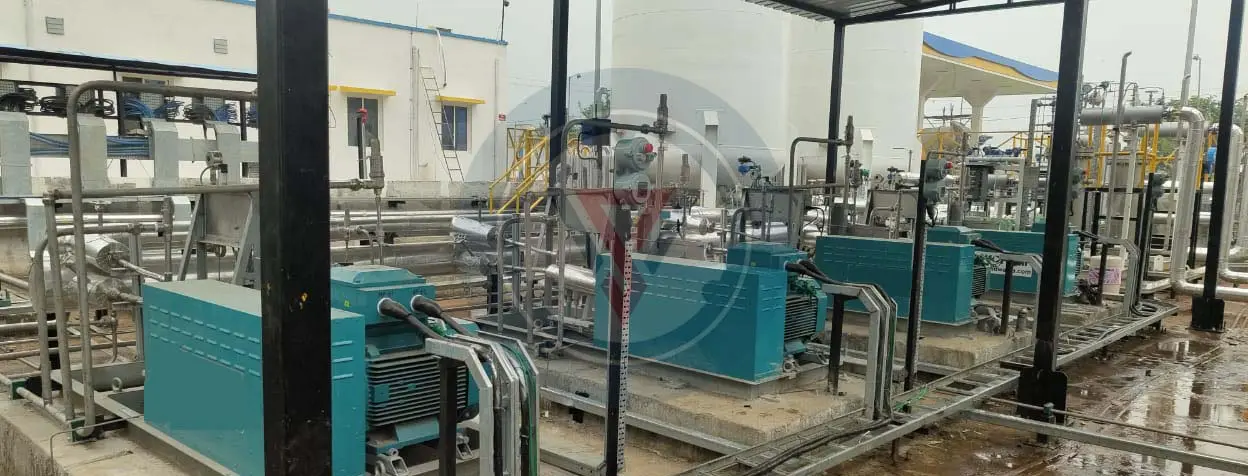

These pumps transfer LNG from cryogenic storage tanks to high-pressure vaporizers where LNG is converted to high-pressure CNG suitable for vehicle cylinder cascade filling.
Technical Specifications of High Pressure Pump
| Specification | Description |
|---|---|
| Medium | LNG |
| Installation | Suitable for Outdoor System. |
| Capacity | 35 LPM |
| Suction Pressure | 6-8 bar + Static Head |
| Discharge Pressure | upto 255 kg/cm2 |
| Design Temperature | -196°C to 50°C |
| MOC | AISI 304 or Equivalant |
| Pump Type | Positive Displacement(Reciprocating Plunger Type |
| Design Code | API 674 |
Applications

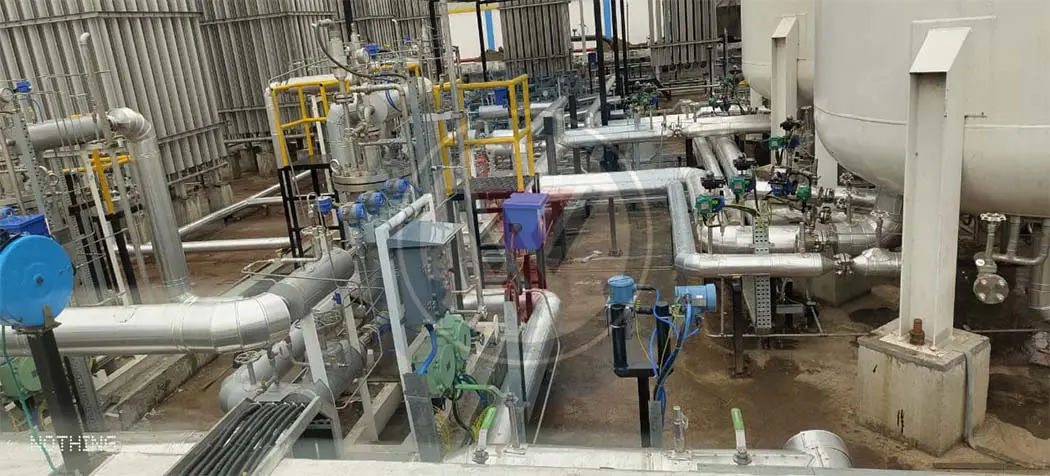

Medium pressure pumps transfer LNG from storage tanks to medium pressure vaporizers where it is converted into natural gas for pipeline distribution or industrial consumption.
Technical Specifications of Medium Pressure Pump
| Specification | Description |
|---|---|
| Medium | LNG |
| Installation | Submerged in a Vacuum Insulated Sump. |
| Suction Pressure | 6-8 bar + Static Head |
| Discharge Pressure | 26-27 bar-g |
| Design Temperature | -196°C to 50°C |
| MOC | AISI 304 or Equivalant |
| Pump Type | Vertical Submersible |
| Design Code | API 610 |
| Design Lifetime: | 15+ years with proper maintenance |
Applications

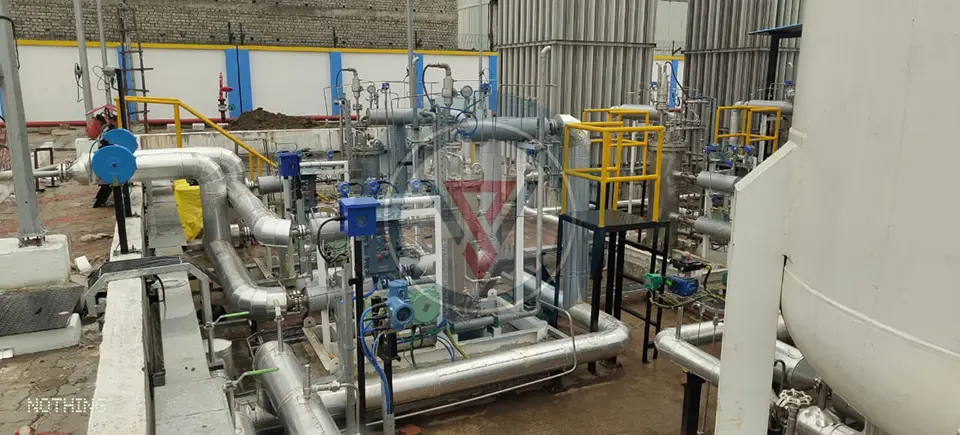

These are submerged or centrifugal cryogenic pumps used for unloading LNG from tanker trucks into storage tanks and for LNG dispensing into vehicles.
Technical Specifications of Unloading Pump
| Specification | Description |
|---|---|
| Medium | LNG |
| Installation | Submerged in a Vacuum Insulated Sump. |
| Capacity | 350 LPM |
| Suction Pressure | 3-4 bar + Static Head |
| Discharge Pressure | 8-10 bar-g |
| Design Temperature | -196°C to 50°C |
| MOC | AISI 304 or Equivalant |
| Pump Type | Vertical Submersible |
| Design Code | API 610 |
| Design Lifetime: | 15+ years with proper maintenance |
Applications
All our tanks can be customized with components like SRV for safety, temperature gauge, pressure gauge, fixed level gauge, magnetic level gauge, high level alarm or switch.
Our Storage tanks comply with international safety and quality guidelines
VSPV stands behind our products throughout their service life:
1-year warranty on manufacturing defects
Contact VSPV today for detailed specifications and customization options to meet your specific Petrolium storage requirements.
