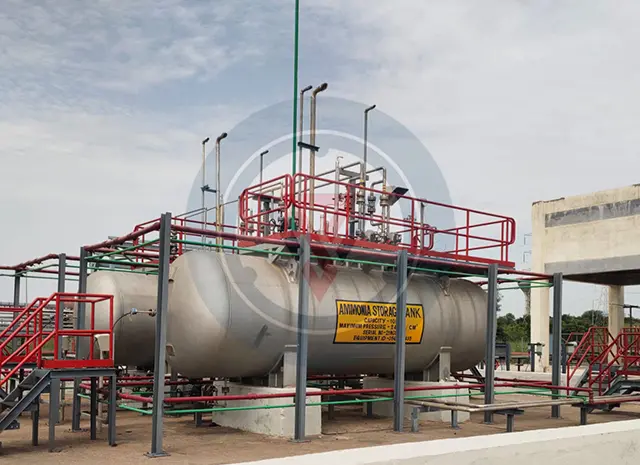

Static tanks for the storage of ammonia in mounded and aboveground installations, made in accordance with IS 2825, ASME Section VIII Div I and div II, PD5500 Upon request we can manufacture tanks to the regulatory requirements of the place of destination.
Optionally any tank capacity can be manufactured in accordance with ASME, VIII div. l and div 2 ASME marking and European Pressure equipment Directive 2014/68/UE, and with CE marking..
VSPV manufactures premium Static storage tanks for the storage of ammonia and in capacities from 1 to 400 m3 .Thanks to our extensive range of diameters, the scope of possible tank sizes always allows storage capacity requirements to adapt to the characteristics of each project.
Our premium quality Static storage tanks are used in various industrial and commercial applications across the country.
Versatile applications of ammonia include Semiconductor, photo cell manufacturing for solar power systems, fertilizer production, refrigeration, cleaning products, chemical manufacturing, water treatment, petroleum refining, pharmaceutical industry, textile industry, metal processing, pulp and paper industry, food processing industry, and electronics manufacturing.
Technical Specifications
| Specification | Ammonia |
|---|---|
| Design Code: | IS 2825, ASME Section VIII Div I and div II, |
| Tank Type | Horizontal |
| Design Pressure | 23 kg/cm² + static head |
| Design Temperature | Min -43°C / Max 55°C |
| Working Pressure | 14 bar |
| Corrosion Allowance | 1.5 mm to 3 mm |
| Dish End: | Torispherical, Ellipsoidal, Hemispherical |
| Support Type: | Saddle / RCC |
| External Finish | Sand blasting as per SA 2.5 and painting as per customer request |
| Design Lifetime: | 15+ years with proper maintenance |
All our tanks can be customized with components thermal SRV for safety, temperature gauge / transmitter, pressure gauge and transmitter, level gauge and transmitter, high level alarm or switch.
Our Storage tanks comply with international safety and quality guidelines
All VSPV storage tank undergo extensive testing and are PESO approved and comply to the SMPV rules
VSPV stands behind our products throughout their service life:
1-year warranty on manufacturing defects
Contact VSPV today for detailed specifications and customization options to meet your specific LPG storage requirements.
